Image Segmentation and CLIPSeg Workflows#
Image segmentation is another helpful tool for finding patterns in images. If you are interested in learning what percent of an image is made up of a certain feature, like sky vs. ground, or you want to remove the background, segmentation is a go-to tool.
In this notebook, we’ll explore image segmentation using open source models with participatory science data like iNaturaist and NASA GLOBE Land Cover.
1. General Segmentation with Segment Anything Model (SAM)#
Let’s explore image segmentation with the Segment Anything Model, a model that has a wide range of applications and is able to segment all parts of an image to differentiate between different objects.
# Install required packages
!pip install segment-anything opencv-python matplotlib pillow requests
!pip install git+https://github.com/facebookresearch/segment-anything.git
import torch
import numpy as np
import matplotlib.pyplot as plt
from PIL import Image, ImageDraw
import requests
from io import BytesIO
import cv2
from segment_anything import sam_model_registry, SamAutomaticMaskGenerator, SamPredictor
# Load the Segment Anything Model
print("Loading SAM model... (this may take a moment)")
# Download model checkpoint
!wget -q https://dl.fbaipublicfiles.com/segment_anything/sam_vit_h_4b8939.pth
# Initialize SAM
model_type = "vit_h"
checkpoint = "sam_vit_h_4b8939.pth"
device = "cuda" if torch.cuda.is_available() else "cpu"
sam = sam_model_registry[model_type](checkpoint=checkpoint)
sam.to(device=device)
# Create mask generator for automatic segmentation
mask_generator = SamAutomaticMaskGenerator(
model=sam,
points_per_side=32,
pred_iou_thresh=0.86,
stability_score_thresh=0.92,
crop_n_layers=1,
crop_n_points_downscale_factor=2,
min_mask_region_area=100,
)
print("Model loaded")
def load_image(url):
"""Load an image from a URL"""
try:
response = requests.get(url, stream=True)
image = Image.open(BytesIO(response.content)).convert("RGB")
return image
except Exception as e:
print(f"Error loading image: {e}")
return None
def show_anns(anns, ax):
"""
Visualize segmentation masks with different colors
Args:
anns: List of annotation dictionaries from SAM
ax: Matplotlib axis to draw on
"""
if len(anns) == 0:
return
# Sort by area (largest first)
sorted_anns = sorted(anns, key=(lambda x: x['area']), reverse=True)
# Create colored mask overlay
img = np.ones((sorted_anns[0]['segmentation'].shape[0],
sorted_anns[0]['segmentation'].shape[1], 4))
img[:, :, 3] = 0 # Transparent background
for ann in sorted_anns:
m = ann['segmentation']
# Generate random color for each segment
color_mask = np.concatenate([np.random.random(3), [0.5]]) # 50% transparency
img[m] = color_mask
ax.imshow(img)
def create_mask_overlay(image, masks):
"""
Create a visualization with colored segmentation masks overlaid on the original image
Args:
image: PIL Image
masks: List of mask dictionaries from SAM
Returns:
PIL Image with overlay
"""
# Convert PIL image to numpy array
img_array = np.array(image)
# Create overlay
overlay = img_array.copy()
# Sort masks by area
sorted_masks = sorted(masks, key=(lambda x: x['area']), reverse=True)
for mask_dict in sorted_masks:
mask = mask_dict['segmentation']
# Random color for each segment
color = np.random.randint(0, 255, size=3)
overlay[mask] = overlay[mask] * 0.5 + color * 0.5
return Image.fromarray(overlay.astype(np.uint8))
def run_segmentation(image_urls):
"""
Run SAM segmentation on a list of image URLs
Args:
image_urls: List of image URLs or single URL string
"""
# Handle single URL
if isinstance(image_urls, str):
image_urls = [image_urls]
for idx, url in enumerate(image_urls, 1):
print(f"\n{'='*60}")
print(f"Processing Image {idx}/{len(image_urls)}")
print(f"URL: {url}")
# Load the image
image = load_image(url)
if image is None:
continue
# Convert to numpy array for SAM
image_array = np.array(image)
# Generate masks
print("Generating segmentation masks...")
masks = mask_generator.generate(image_array)
print(f"Found {len(masks)} segments")
# Create visualization
fig, axes = plt.subplots(1, 3, figsize=(20, 6))
# Original image
axes[0].imshow(image)
axes[0].set_title("Original Image", fontsize=14, fontweight='bold')
axes[0].axis('off')
# Segmentation masks only
axes[1].imshow(image)
show_anns(masks, axes[1])
axes[1].set_title(f"Segmentation Masks ({len(masks)} segments)",
fontsize=14, fontweight='bold')
axes[1].axis('off')
# Overlay on original
overlay_img = create_mask_overlay(image, masks)
axes[2].imshow(overlay_img)
axes[2].set_title("Overlay on Original", fontsize=14, fontweight='bold')
axes[2].axis('off')
plt.tight_layout()
plt.show()
Model loaded
# Apply segmentation to iNaturalist photos
example_urls = [
"https://inaturalist-open-data.s3.amazonaws.com/photos/639462446/large.jpg",
"https://inaturalist-open-data.s3.amazonaws.com/photos/639441608/large.jpg"
]
run_segmentation(example_urls)
============================================================

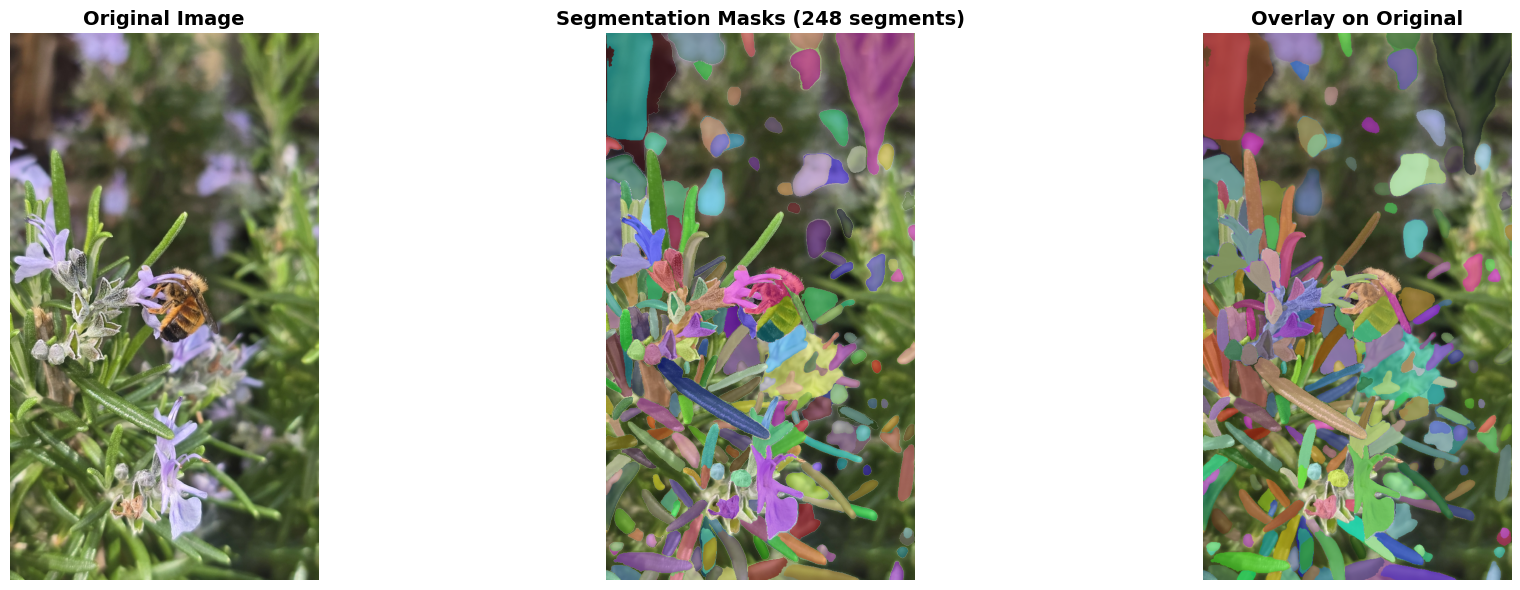

Processing Image 1/2
URL: https://inaturalist-open-data.s3.amazonaws.com/photos/639462446/large.jpg
Generating segmentation masks...
Found 248 segments
============================================================

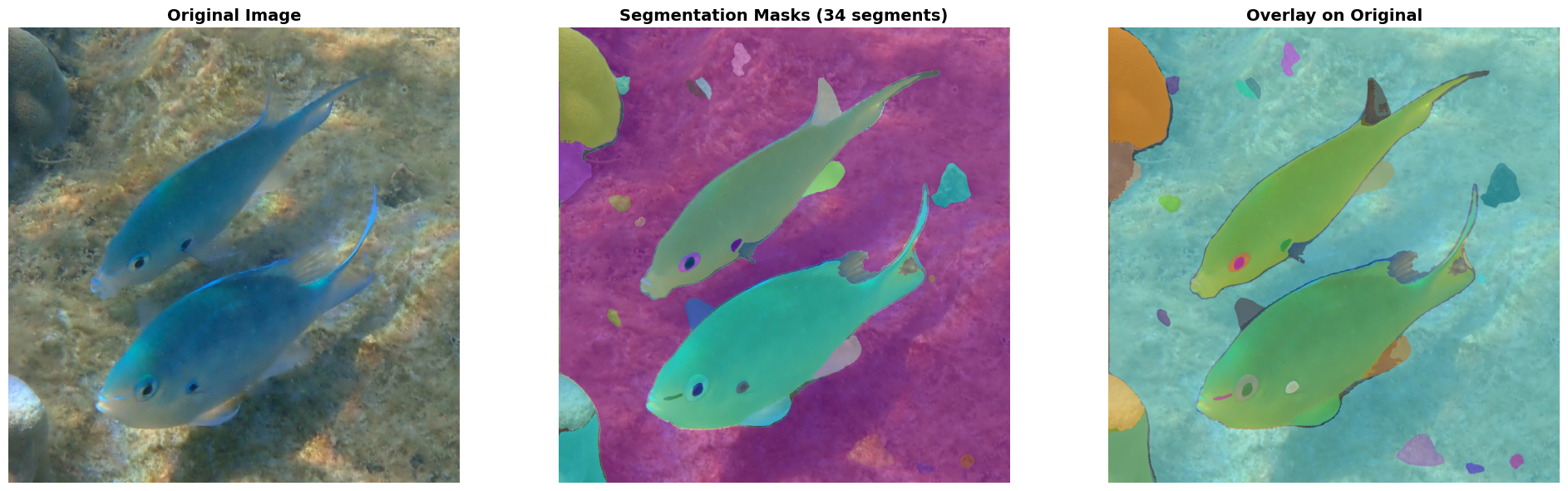

Processing Image 2/2
URL: https://inaturalist-open-data.s3.amazonaws.com/photos/639441608/large.jpg
Generating segmentation masks...
Found 34 segments
2. Prompt-Based Segmentation with CLIPSeg + SAM#
In the above example, we segmented everything in the image, including the main animal like the bee (image 1) and fish (image 2), as well as the background like flowers, leaves, and rocks. You might want to find a specific feature of an image, rather than all of these.
In the below example, we’ll explore how to segment an image to get a specific feature using a prompt. We’ll use the CLIPSeg model by Timo Lüddecke and Alexander Ecker. Then, after CLIPSeg identifies the specific feature, we’ll use SAM to refine the segmentation and get a more specific outline.
You can input the URL to an image and a prompt for what you want to find within the image, and the model will do the rest.
# Install required package
!pip install -q transformers
from transformers import CLIPSegProcessor, CLIPSegForImageSegmentation
import torch
from matplotlib import pyplot as plt
import numpy as np
from PIL import Image
import requests
from io import BytesIO
# Load CLIPSeg model
print("Loading CLIPSeg model for text-prompted segmentation...")
processor = CLIPSegProcessor.from_pretrained("CIDAS/clipseg-rd64-refined")
clipseg_model = CLIPSegForImageSegmentation.from_pretrained("CIDAS/clipseg-rd64-refined")
# Move to GPU if available
device = "cuda" if torch.cuda.is_available() else "cpu"
clipseg_model.to(device)
print("CLIPSeg model loaded successfully!")
print(f"Using device: {device}")
sam_predictor = SamPredictor(sam)
def segment_with_prompt(image_url, text_prompts, threshold=0.4, use_sam_refinement=True):
"""
Segment objects in an image based on text prompts
Args:
image_url: URL of the image
text_prompts: Single prompt string or list of prompts (e.g., "cat" or ["cat", "dog", "person"])
threshold: Confidence threshold for segmentation (0-1, higher = more strict)
use_sam_refinement: Whether to refine masks with SAM (better quality but slower)
"""
# Convert single prompt to list
if isinstance(text_prompts, str):
text_prompts = [text_prompts]
print(f"\n{'='*60}")
print(f"Text Prompts: {text_prompts}")
print(f"Image URL: {image_url}")
print('='*60)
# Load image
image = load_image(image_url)
if image is None:
return
# Prepare inputs for CLIPSeg
inputs = processor(
text=text_prompts,
images=[image] * len(text_prompts),
padding=True,
return_tensors="pt"
).to(device)
# Generate segmentation masks
print(f"Generating segmentation masks for {len(text_prompts)} prompt(s)...")
with torch.no_grad():
outputs = clipseg_model(**inputs)
# Get predictions
preds = outputs.logits
# Process each prompt's mask
image_array = np.array(image)
masks = []
refined_masks = []
for idx, prompt in enumerate(text_prompts):
# Get mask for this prompt
mask = torch.sigmoid(preds[idx]).cpu().numpy()
# Resize mask to original image size
mask_resized = np.array(Image.fromarray(mask).resize(image.size, Image.BILINEAR))
# Apply threshold
binary_mask = mask_resized > threshold
masks.append((binary_mask, mask_resized, prompt))
# Optionally refine with SAM
if use_sam_refinement and binary_mask.sum() > 0:
# Find bounding box of the mask
coords = np.argwhere(binary_mask)
if len(coords) > 0:
y_min, x_min = coords.min(axis=0)
y_max, x_max = coords.max(axis=0)
# Use SAM to refine the mask
sam_predictor.set_image(image_array)
box = np.array([x_min, y_min, x_max, y_max])
refined_mask, _, _ = sam_predictor.predict(
box=box,
multimask_output=False
)
refined_masks.append((refined_mask[0], prompt))
else:
refined_masks.append((binary_mask, prompt))
else:
if binary_mask.sum() > 0:
print(f"Found '{prompt}'")
else:
print(f"'{prompt}' not detected (try lowering threshold)")
# Visualization
num_plots = 3 if use_sam_refinement else 2
fig, axes = plt.subplots(1, num_plots, figsize=(7*num_plots, 6))
if num_plots == 2:
axes = [axes[0], axes[1]]
# Original image
axes[0].imshow(image)
axes[0].set_title("Original Image", fontsize=14, fontweight='bold')
axes[0].axis('off')
# CLIPSeg masks with heatmap overlay
overlay = image_array.copy().astype(float)
combined_mask = np.zeros((*image.size[::-1], 3))
for binary_mask, mask_resized, prompt in masks:
if binary_mask.sum() > 0:
# Generate unique color
color = np.random.randint(50, 255, size=3)
# Create colored mask
mask_3d = np.stack([binary_mask]*3, axis=-1)
combined_mask += mask_3d * color
# Add heatmap overlay
heatmap = plt.cm.jet(mask_resized)[:, :, :3] * 255
overlay = overlay * 0.6 + heatmap * 0.4 * np.expand_dims(binary_mask, -1)
axes[1].imshow(overlay.astype(np.uint8))
axes[1].set_title("CLIPSeg Segmentation", fontsize=14, fontweight='bold')
axes[1].axis('off')
# SAM refined masks (if enabled)
if use_sam_refinement and len(refined_masks) > 0:
refined_overlay = image_array.copy()
for refined_mask, prompt in refined_masks:
if refined_mask.sum() > 0:
color = np.random.randint(50, 255, size=3)
refined_overlay[refined_mask] = refined_overlay[refined_mask] * 0.4 + color * 0.6
axes[2].imshow(refined_overlay.astype(np.uint8))
axes[2].set_title("SAM Refined Segmentation", fontsize=14, fontweight='bold')
axes[2].axis('off')
plt.tight_layout()
plt.show()
# Print summary
print(f"\nSegmentation Summary:")
for binary_mask, _, prompt in masks:
coverage = (binary_mask.sum() / binary_mask.size) * 100
if binary_mask.sum() > 0:
print(f" • '{prompt}': {coverage:.2f}% of image")
else:
print(f" • '{prompt}': Not detected")
Let’s segment bee, as well as the flowers and leaves, from the iNaturalist image!
example_url = "https://inaturalist-open-data.s3.amazonaws.com/photos/639462446/large.jpg"
print("\nExample: Segmenting 'bee' in the image")
segment_with_prompt(example_url, "bee", threshold=0.2)
print("\nExample: Segmenting multiple objects")
segment_with_prompt(example_url, ["bee", "flower", "leaf"], threshold=0.2)

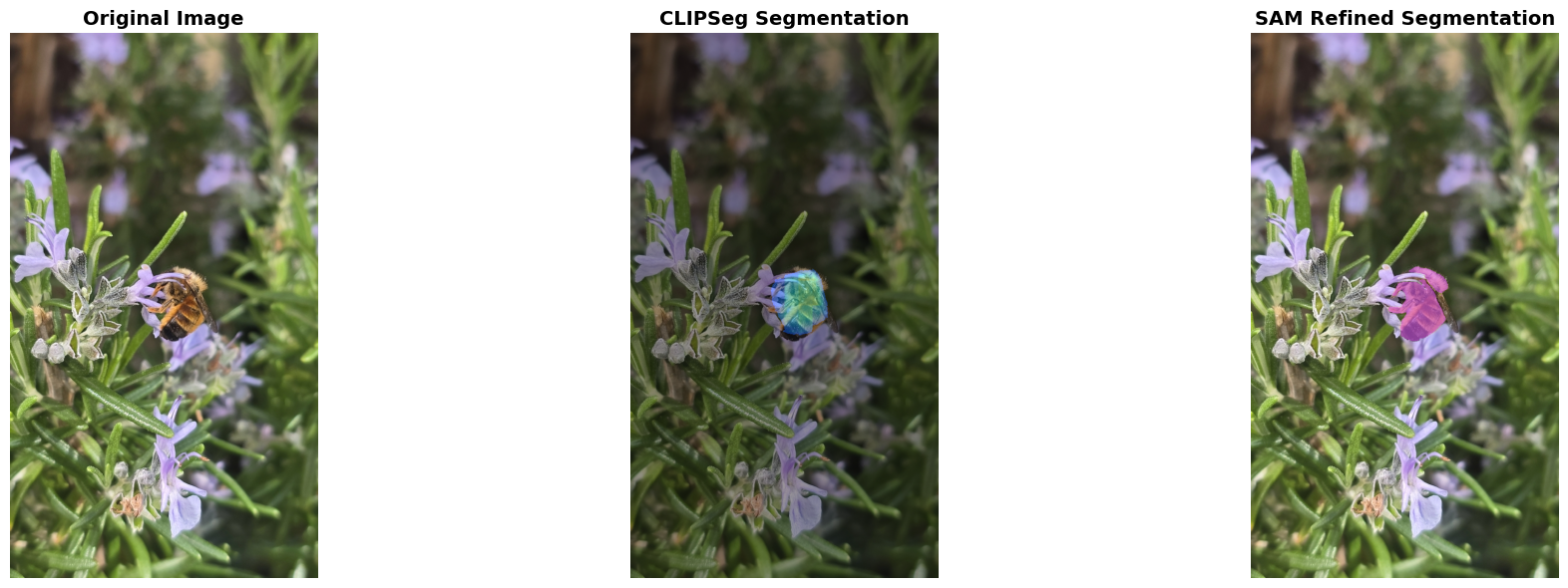

Example: Segmenting 'bee' in the image
============================================================
Text Prompts: ['bee']
Image URL: https://inaturalist-open-data.s3.amazonaws.com/photos/639462446/large.jpg
============================================================
Generating segmentation masks for 1 prompt(s)...
Segmentation Summary:
• 'bee': 1.67% of image

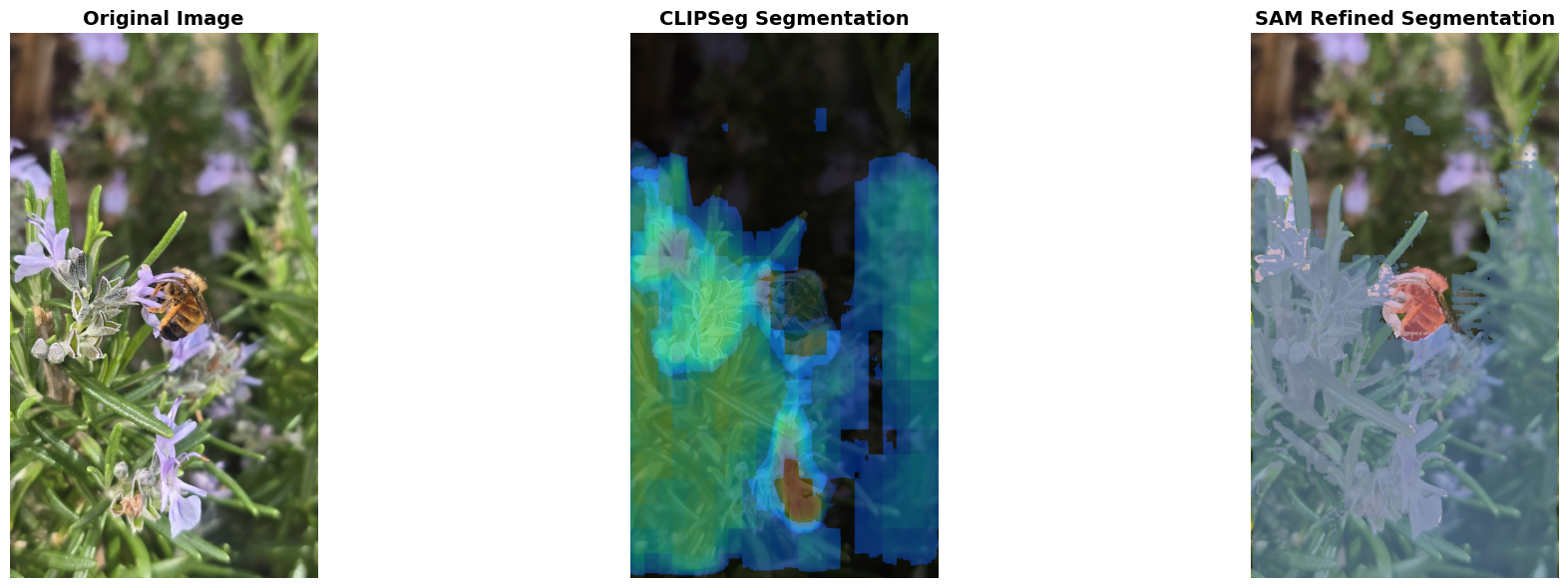

Example: Segmenting multiple objects
============================================================
Text Prompts: ['bee', 'flower', 'leaf']
Image URL: https://inaturalist-open-data.s3.amazonaws.com/photos/639462446/large.jpg
============================================================
Generating segmentation masks for 3 prompt(s)...
Segmentation Summary:
• 'bee': 1.67% of image
• 'flower': 16.67% of image
• 'leaf': 60.90% of image
This model is also helful for understanding landscapes. Let’s test it on an image submitted to NASA GLOBE Observer’s Land Cover participatory science initiative.
example_url = "https://data.globe.gov/system/photos/2024/12/31/4325697/original.jpg"
print("\nExample: Segmenting 'snow' in the image")
segment_with_prompt(example_url, "snow", threshold=0.2)
print("\nExample: Segmenting multiple objects")
segment_with_prompt(example_url, ["snow", "tree", "sky"], threshold=0.2)

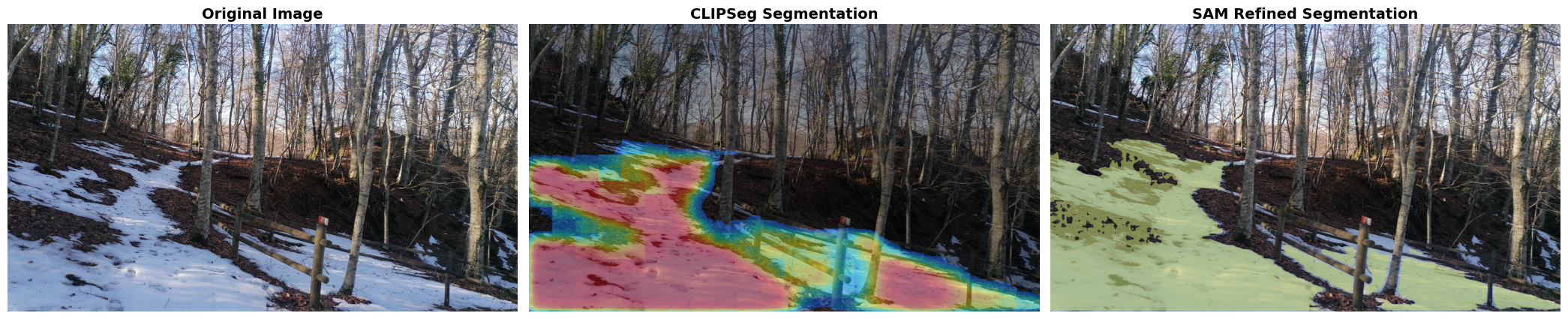

Example: Segmenting 'snow' in the image
============================================================
Text Prompts: ['snow']
Image URL: https://data.globe.gov/system/photos/2024/12/31/4325697/original.jpg
============================================================
Generating segmentation masks for 1 prompt(s)...
Segmentation Summary:
• 'snow': 34.45% of image

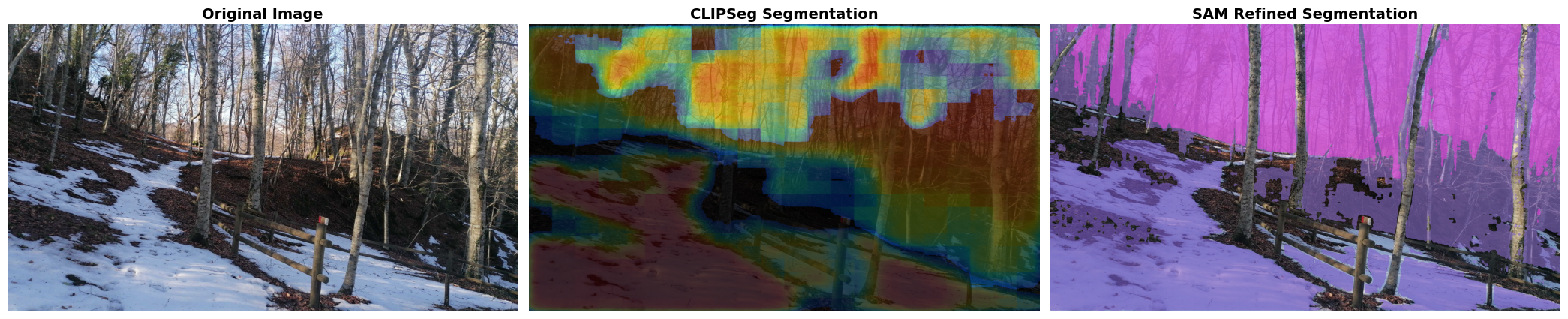

Example: Segmenting multiple objects
============================================================
Text Prompts: ['snow', 'tree', 'sky']
Image URL: https://data.globe.gov/system/photos/2024/12/31/4325697/original.jpg
============================================================
Generating segmentation masks for 3 prompt(s)...
Segmentation Summary:
• 'snow': 34.45% of image
• 'tree': 60.63% of image
• 'sky': 26.07% of image
To use this code for your own images, you can adjust the following code:
image_url = "link to image"
prompts = ["prompt 1", "prompt 2"]
threshold = 0.2 # Increase to filter out less-confident segmentations
segment_with_prompt(image_url, prompts, threshold=threshold)
